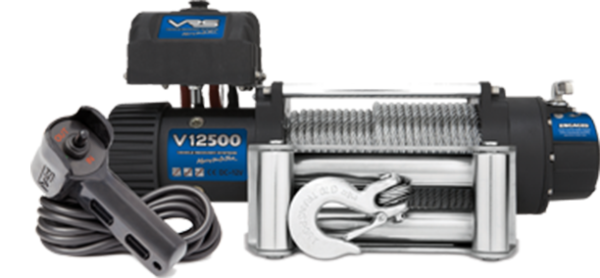

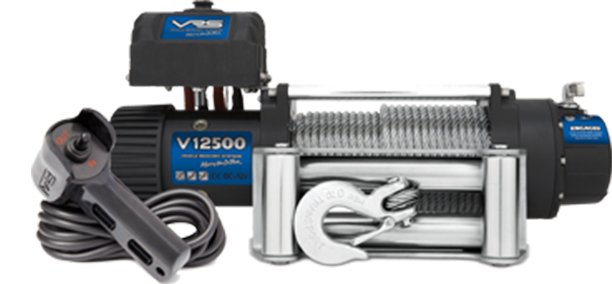

V12500 VRS WINCH WITH STEEL CABLE – AUSTRALIAN DESIGN – 12500 LB (5670KGS) SINGLE LINE

Description

When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 5670kgs of pulling power and fast line speed under load, the VRS 12500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch
FEATURES
IP68 Water & Dust rating
Textured UV and corrosion resistant finish
Sealed to resist water penetration
Stainless steel hardware and fittings
Heavy duty sealed high amperage contactor controller
Multi-segmented cam activated brake
Powerful pulling power
Fast line speed under load
Designed in Australia for the World
SPECIFICATIONS:
Line Pull               12,500lb / 5,670kg
Motor 12V           Series Wound 5.3hp/3.9kw 12v DC
Gear Train           3 stage planetary gears
Gear Ratio           273 : 1
Freespool            Sliding ring gear
Brake                    Automatic, in the drum
Battery                 Recommended 650 CCA minimum for winching
Battery Lead       25mm, 72″ (1.83M)
Wire Rope Size  3/8″ x 85″ (9.5mm x 26m)
Drum Size            2.5″ x 9.0″ (64mm x 224mm)
Mounting Bolt Pattern   10″ x 4.5″ (254mm x 114.3mm)
Dimensions        23″ x 6.6″x 8.4″ (552mm x 168mm x 214mm)
