REDARC 24V 20A Low Voltage Under Bonnet DC Battery Charger

Description

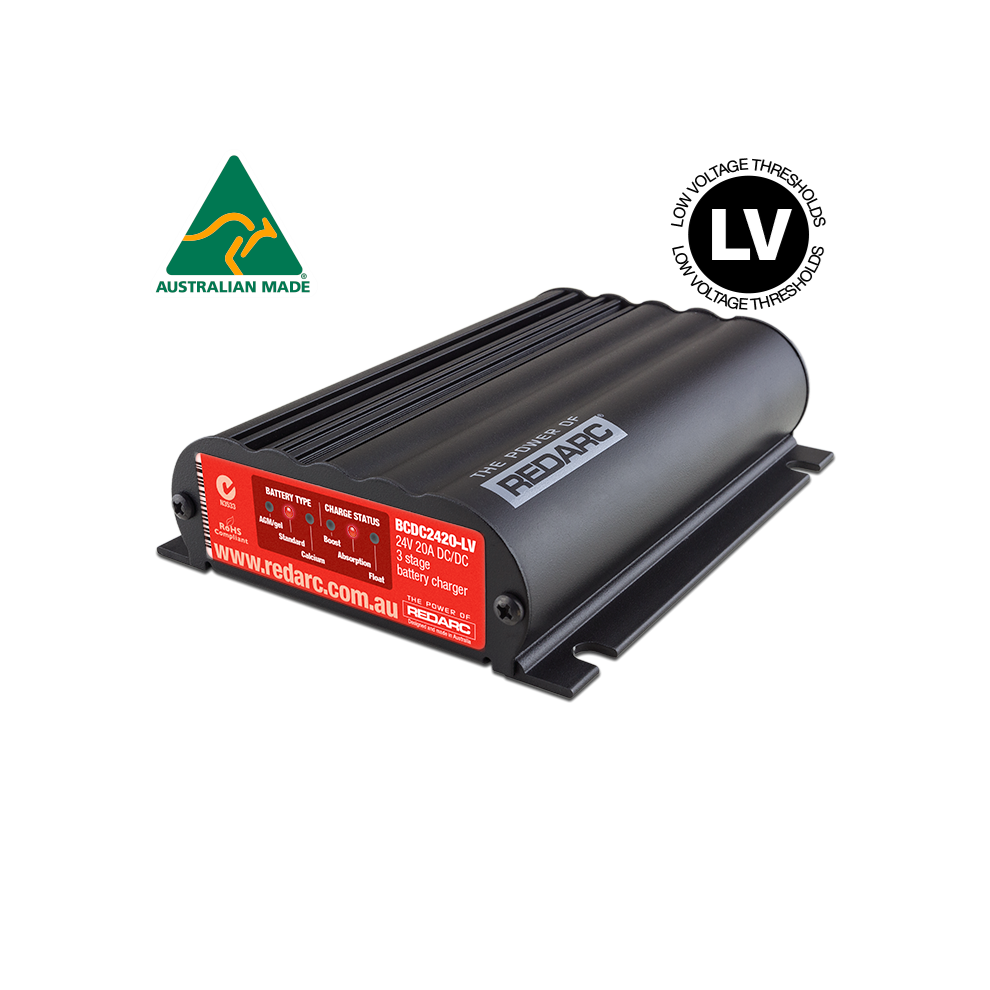

REDARC 24V 20A Low Voltage Under Bonnet DC Battery Charger (BCDC2420-LV)
The BCDC2420-LV is a 24 Volt, 20 Amp low voltage in-vehicle DC charger featuring technology designed to charge all major lead acid batteries. Suitable for vehicles fitted an an ECU-controlled variable voltage alternator, the BCDC2420-LV is fully potted, making it ideal for the high heat, dust, and vibration commonly experienced under bonnet. Operates from a vehicle input between 9 and 32 Volts DC.
Features:
Multi-stage DC to DC battery charging
MPPT solar regulator
Start battery isolator
Fully sealed design
AGM, gel, calcium content, VRLA and standard lead acid battery charging
Specifications:
Input (operating) voltage: 9-32VDC
Input charge: vehicle or solar
Installation type: in-cabin or under bonnet
Output current rating: 20A, 20A
Maximum charging voltage: 30.6V
Input fuse rating: 50A
Output fuse rating: 30A
Standby current draw: <50mA Output system voltage: 24VDC Output power: 600W Type approval: E and CE
